KP KPF02 30100100 3.7V 6500mAh Lithium Polymer LiPo Rechargeable Battery with 5-Pin Connector – 24.05Wh

1. Product Overview

The KP KPF02 30100100 is a high-capacity 3.7V, 6500mAh rechargeable lithium polymer pouch battery. It provides 24.05Wh of nominal energy and is designed for compatible tablets, portable DVD players, media devices and other rechargeable electronic equipment.

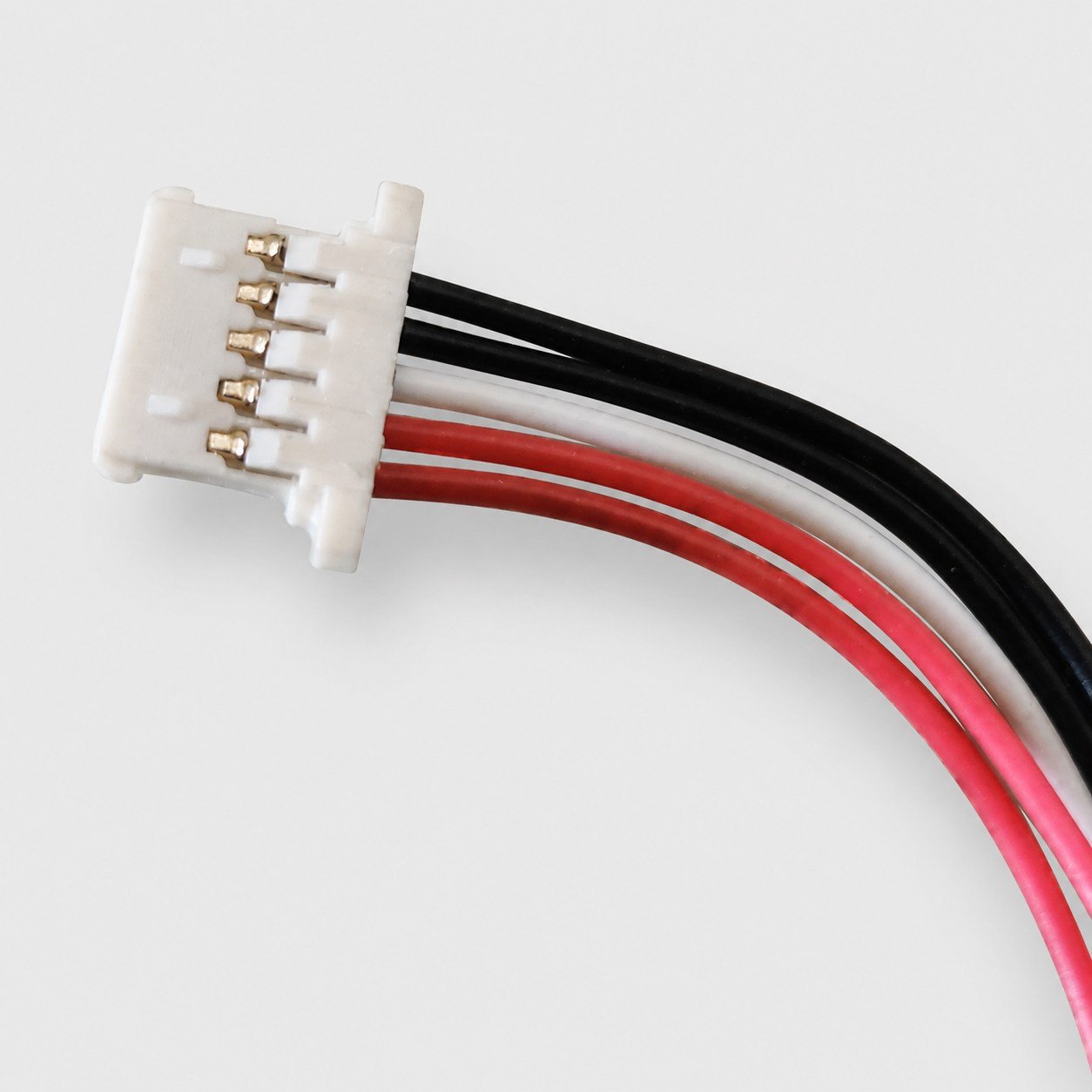

The battery includes a multi-wire lead terminating in a 5-pin connector. Compatibility must be confirmed by checking the voltage, connector, pin configuration, polarity, physical dimensions and charging system of the original device.

2. Electrical Specifications

3. Physical Specifications

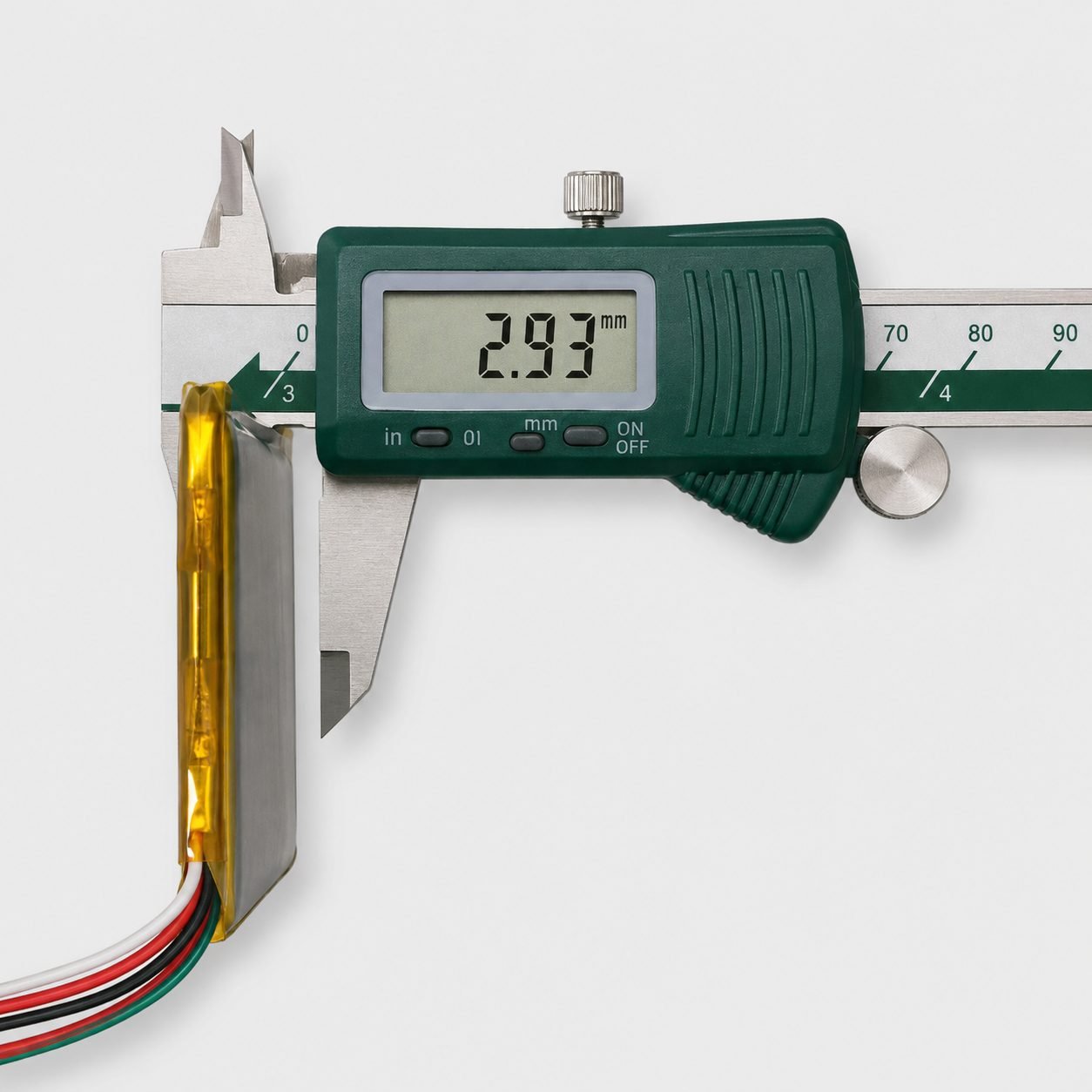

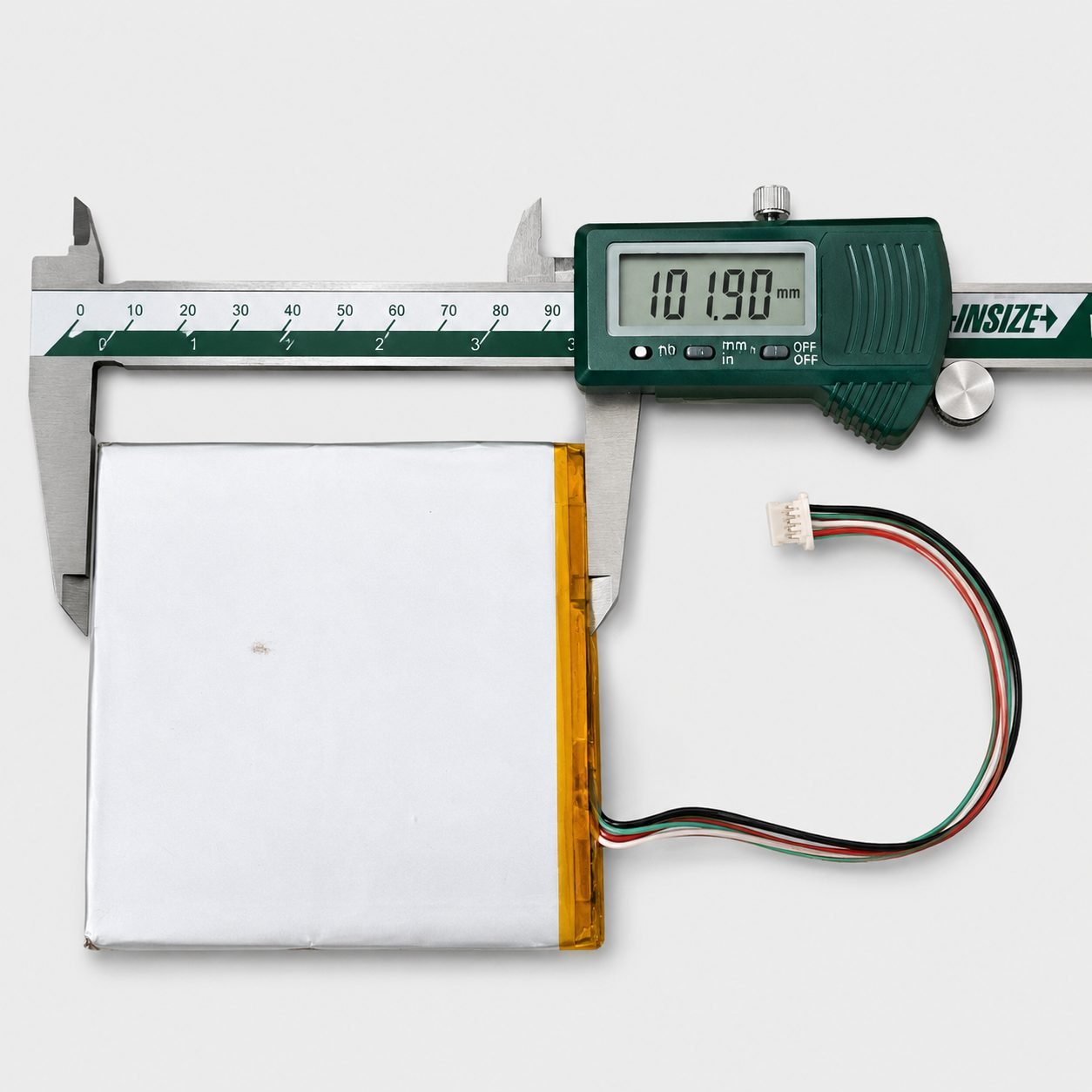

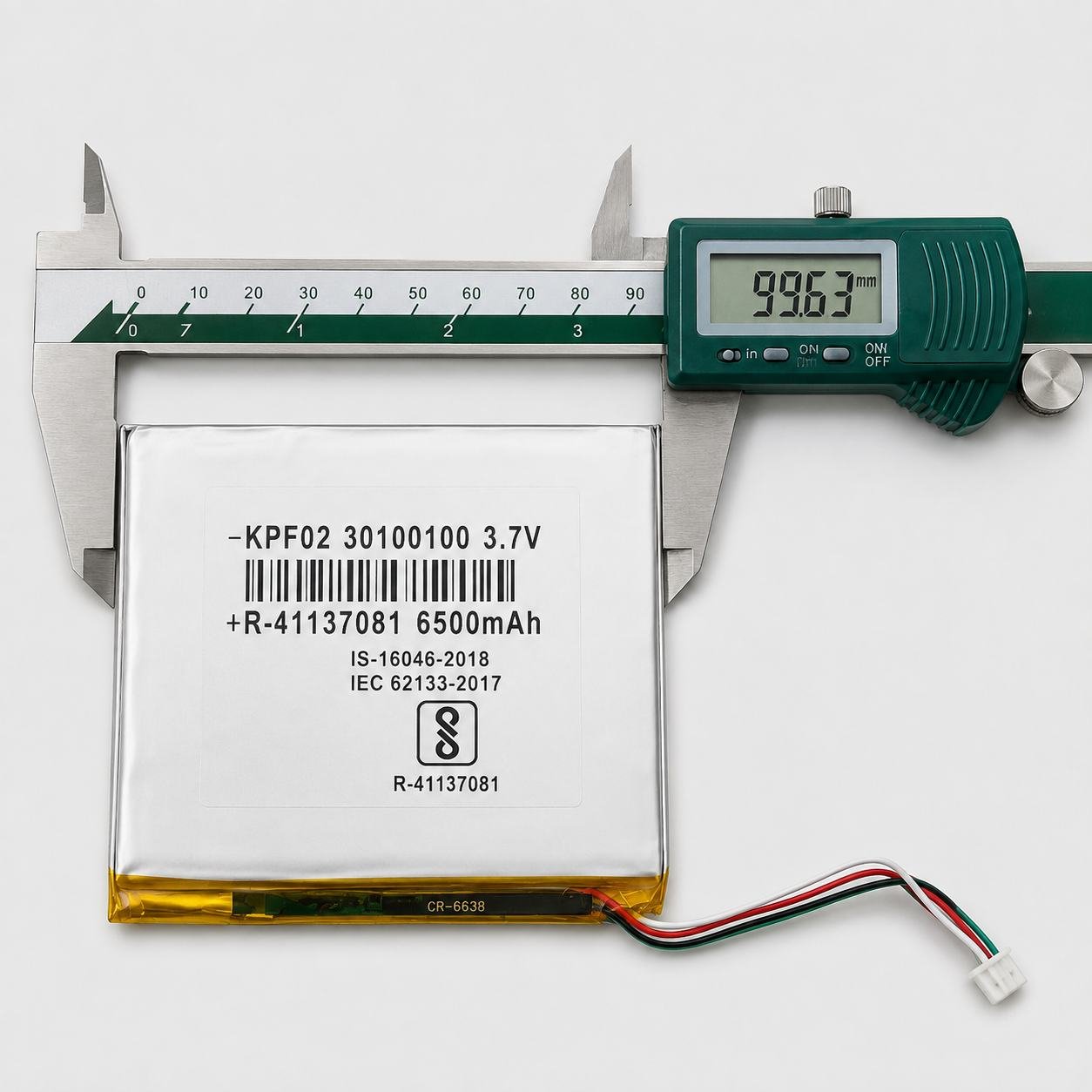

The finished battery dimensions may differ slightly from its size code because of the protection board, wiring, connector, tape and pouch tolerances. Measure the original battery and available installation space before purchasing.

4. Standards and Markings

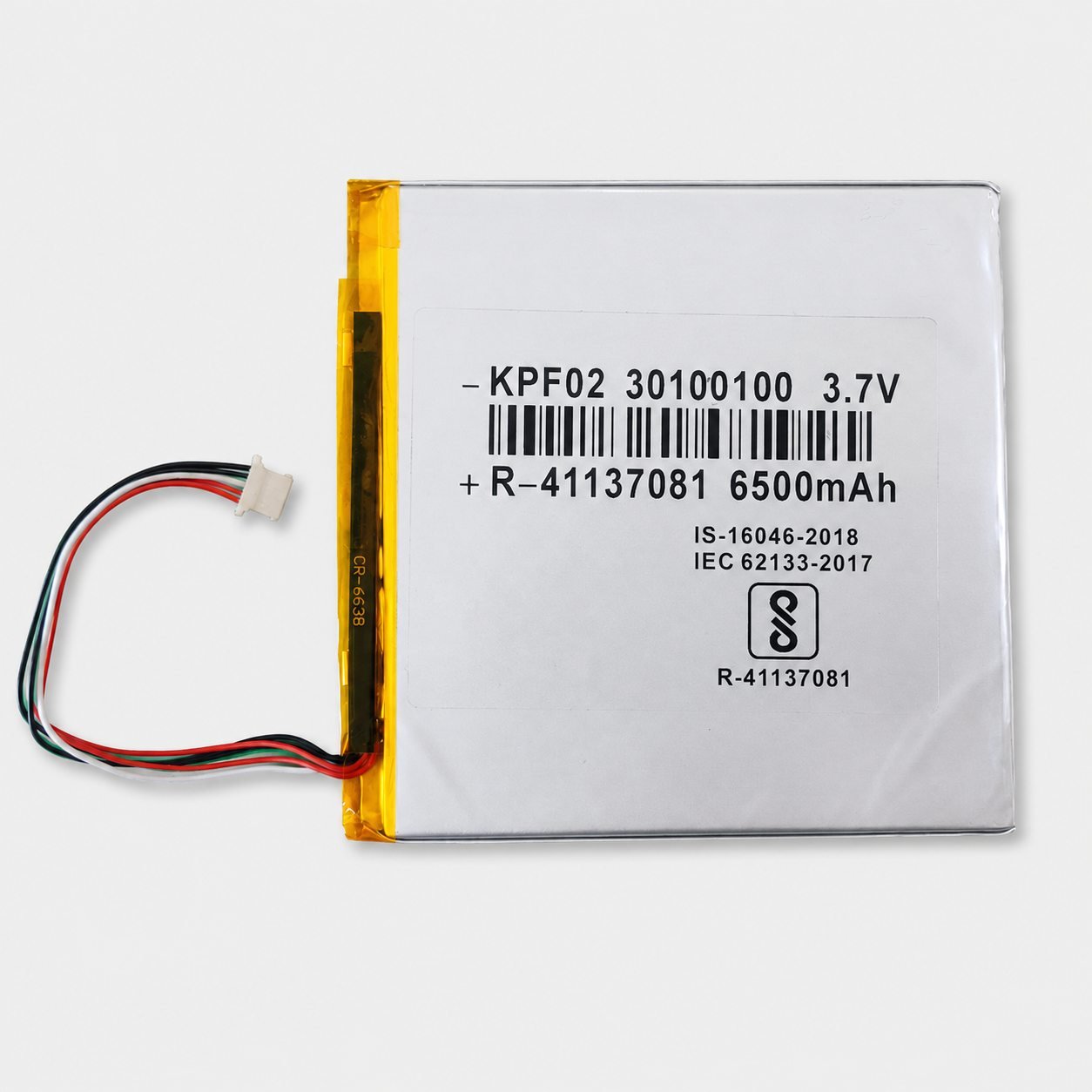

The battery carries the following visible markings:

• BIS standard mark
• BIS registration number: R-41137081
• IS 16046:2018
• IEC 62133:2017
• Product barcode and identification markings

5. Suitable Applications

This battery may be suitable for:

• Compatible tablet computers
• Portable DVD and media players
• Large Bluetooth speakers
• GPS and navigation equipment
• Portable electronic instruments
• Rechargeable consumer electronics
• Battery replacement and repair projects
• Custom electronic equipment using a compatible 1S battery system

Compatibility with a particular device must be verified before installation.

6. Charging and Usage

• Charge only through a compatible 1S lithium-ion/LiPo charging circuit.
• Maximum full-charge voltage must not exceed 4.2V.
• Do not connect the battery directly to a 5V USB supply without a suitable charging controller.
• Verify the function of every connector pin before installation.
• Do not assume wire functions based only on wire colour.
• Do not use the battery if the equipment’s operating or peak current exceeds the battery or protection-board rating.
• Ensure the connector is fully seated and properly insulated.

7. Compatibility Note

Before purchasing, compare this battery with the original battery for:

• 3.7V nominal voltage
• 4.2V full-charge voltage
• 6500mAh capacity
• Physical length, width and thickness
• Connector shape and pin count
• Connector pin configuration
• Wire sequence and polarity
• Charging circuit
• Device operating and peak current
• Available installation space

A similar connector or matching voltage does not by itself guarantee compatibility. Incorrect connector wiring or polarity can damage the battery and connected equipment.

8. Safety Note

• Do not puncture, crush, bend or open the battery pouch.
• Do not short-circuit the connector or wires.
• Do not overcharge or use an incompatible charger.
• Keep away from fire, water and excessive heat.
• Do not use a swollen, leaking, damaged or unusually hot battery.
• Avoid pulling or placing mechanical stress on the wires.
• Installation should be performed by a person familiar with lithium battery wiring and safety.
