JBD ZP16S011-T 16S 50A Lithium-ion BMS

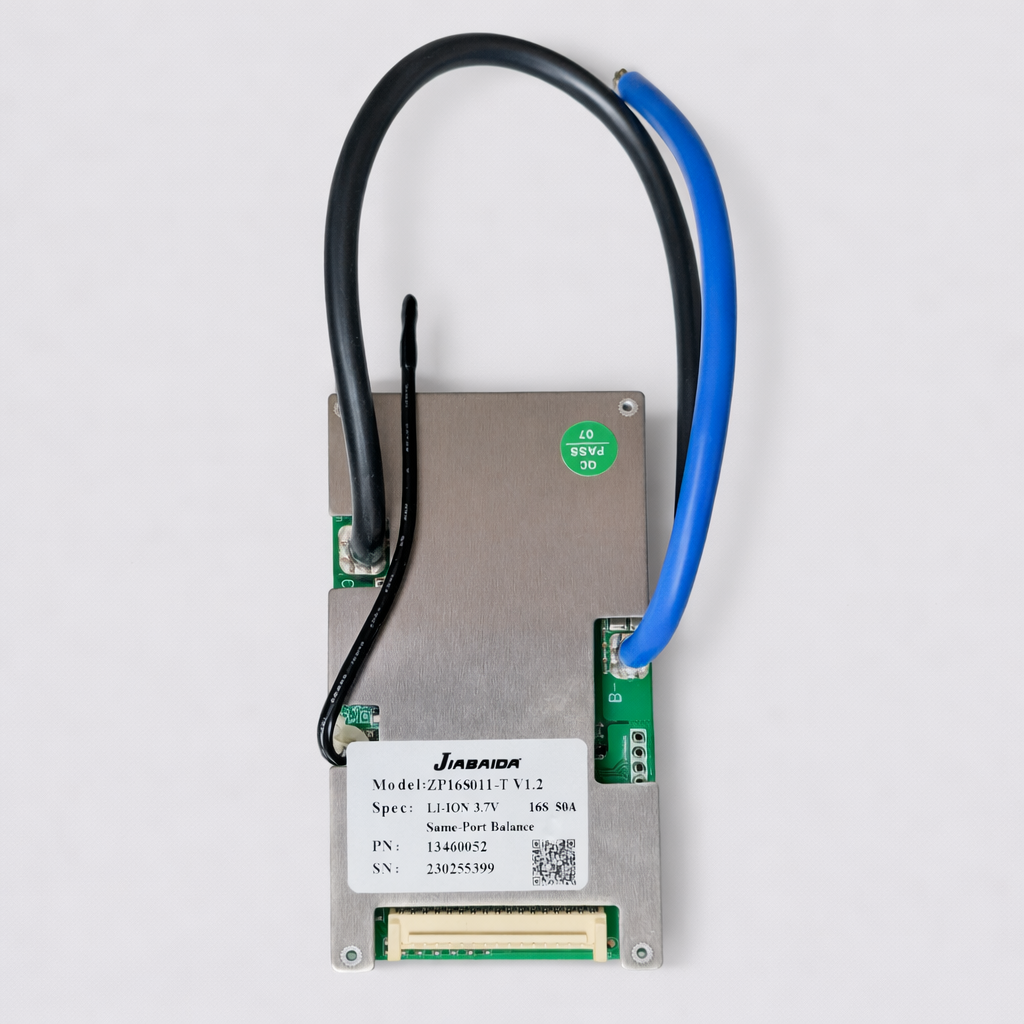

Jiabaida ZP16S011-T V1.2 16S 50A Lithium-ion BMS

(Same-Port Balance Type)

The Jiabaida ZP16S011-T V1.2 is a Battery Management System (BMS) designed for 16-series (16S) Lithium-ion battery packs using 3.7V nominal cells, as specified on the product label.

This unit is rated at 50A and is marked as “Same-Port Balance”, indicating that charging and discharging operate through a common port configuration, as per the manufacturer’s labeling.

The board is intended for integration into battery packs built using 16 Lithium-ion cells connected in series (16S configuration). It is suitable for applications requiring a 16S Lithium-ion battery management solution with a 50A rating, provided the battery chemistry and configuration match the specifications printed on the unit.

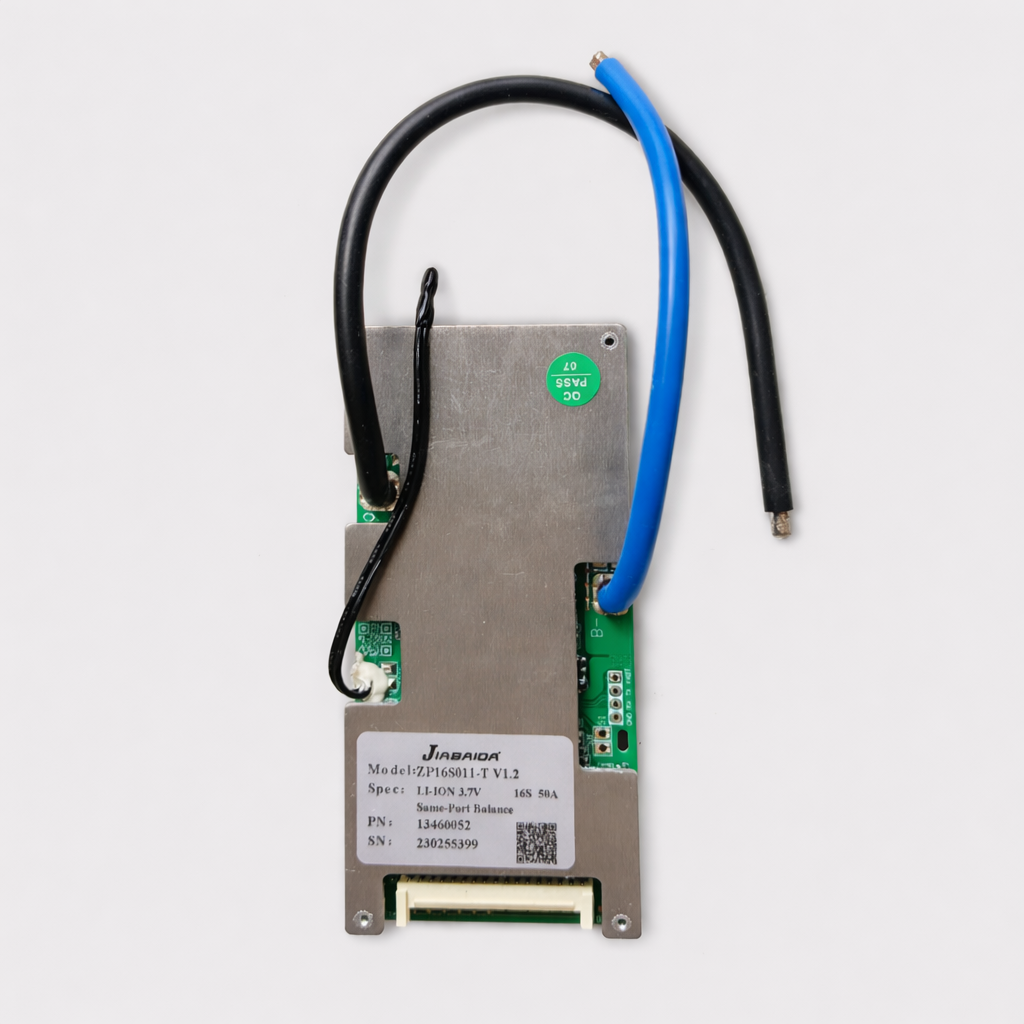

Verified Specifications (As Printed on the Unit)

• Brand: Jiabaida (JBD)
• Model: ZP16S011-T
• Version: V1.2
• Battery Type: LI-ION 3.7V
• Configuration: 16S
• Current Rating: 50A
• Port Type: Same-Port Balance
