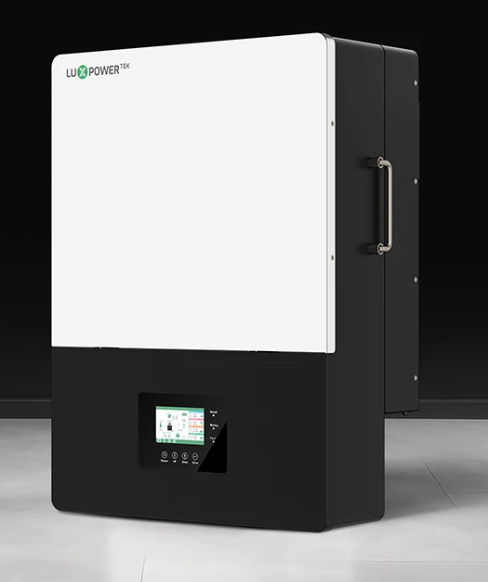

Luxpower LXP-12K/48V/1 Phase Hybrid Inverter

Name: Luxpower LXP-12K/48V/1 Phase Hybrid Inverter
SKU: 16124
Availability: InStock

Original price was: ₹250,000.00.Current price is: ₹198,000.00.

LXP-LB-EU-12K-Datasheet

LXP-LB-EU-12K-user-manual-25.08.28

LuxPower LXP-LB-EU 12K Hybrid Solar Inverter (Single Phase)

• Rated output power: 12kW (UPS 12kW backup)
• 3 MPPT trackers (Max PV input: 18kW)
• Max PV input voltage: 600V
• MPPT voltage range: 120–500V
• Compatible with 48V Lithium & Lead-Acid batteries

Compare

Category: Solar Inverter

Description

1️⃣ Product Overview

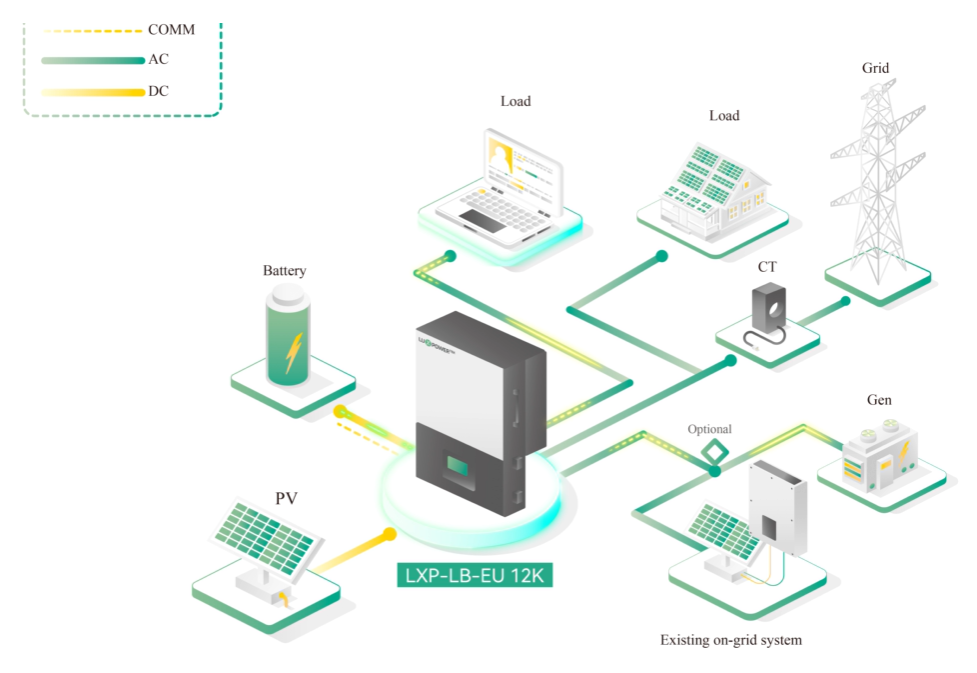

The LuxPower LXP-LB-EU 12K is a single-phase hybrid inverter from the Hybrid Series designed for residential and commercial solar systems. It supports solar PV, battery storage, grid interaction, and generator integration with seamless on/off-grid switching.

2️⃣ PV Input (Solar Side)

• Max PV input power: 18,000W
• Number of MPPT: 3 (3 independent inputs)
• Max PV input voltage: 600V
• MPPT voltage range: 120V – 500V
• Start-up voltage: 140V
• Max PV input current per MPPT: 25A / 15A / 15A
• Max PV short-circuit current per MPPT: 31A / 19A / 19A

3️⃣ Battery System

• Compatible battery type: Lithium-ion / Lead-Acid
• Rated battery voltage: 48V
• Battery voltage range: 40V – 60V
• Max charge/discharge current: 250A
• Max charge/discharge power: 12,000W
• Force wake-up battery from PV: Yes

4️⃣ Grid & AC Output

• Rated AC voltage: 230V
• Rated frequency: 50/60Hz
• Rated AC output current: 50A
• Rated AC output power: 11,500W
• Max AC input current: 200A
• Power factor: 0.99 (Adjustable 0.8 leading to 0.8 lagging)
• Switching time: 20ms
• Waveform: Pure Sine Wave

5️⃣ UPS Output

• Rated UPS output power: 11,500W
• Surge power: 2 × rated power for 0.5s

6️⃣ Efficiency

• MPPT efficiency: 99.9%
• EU efficiency: 96.0%
• Max efficiency: 97.5%
• Max charge/discharge efficiency: 94.0%

7️⃣ Protection

• PV reverse polarity protection
• Over current / over voltage protection
• Anti-islanding protection
• AC short-circuit protection
• Leakage current protection
• Ground fault monitoring
• Grid monitoring
• DC switch
• AC/DC surge protection (Type III)

8️⃣ General Specifications

• Dimensions (W × H × D): 490 × 670 × 265 mm
• Weight: 50 kg
• Ingress protection rating: IP66
• Operating temperature: -25°C to 60°C (Derating above 45°C)
• Storage temperature: -25°C to 60°C
• Display & Communication: Touch color screen, RS485 / Wi-Fi / CAN
• Cooling method: Smart cooling
• Topology: Transformer-less
• Max operating altitude: 2000m
• Noise emission: 50 dB
• Warranty: 5 years
