Luxpower LXP-6K-GEN/48V/1 Phase

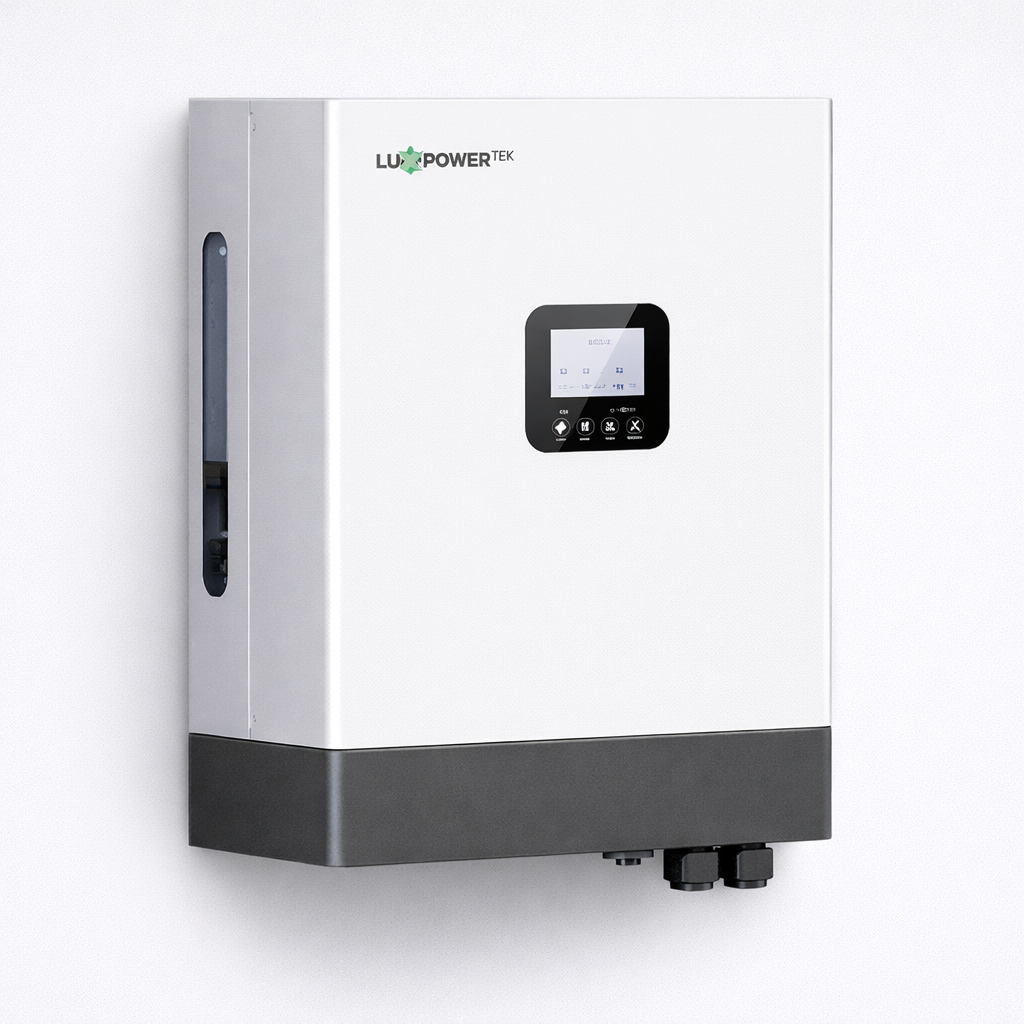

LuxPower LXP-6K-GEN Hybrid Solar Inverter

The LuxPower LXP-6K-GEN is a single-phase hybrid inverter designed for solar and battery applications. It supports 48V battery systems and integrates solar PV input, battery charging, and grid interaction in one unit.

PV Input (Solar Side)

• Rated output power: 6000W
• Dual MPPT design (2 independent MPPT inputs)
• Maximum PV input voltage: 500V
• MPPT operating voltage range: 120V – 385V
• Start-up voltage: 100V

Battery System

• Compatible battery type: Lithium-ion / Lead-Acid
• Rated battery voltage: 48V
• Battery voltage range: 38.4V – 60V
• Supports charging & discharging operation

Grid & Output

• Rated AC voltage: 230V
• Rated frequency: 50/60Hz
• Pure sine wave output
• Switching time: <7ms (single mode)

General Specifications

• Ingress protection: IP20
• Cooling method: Smart cooling
• Display & Communication: LCD + LED, RS485 / Wi-Fi / CAN
• Warranty: 2 Years
