LuxPower PGEM 51.2V 100Ah Lithium Battery (5.12kWh)

1️⃣ Product Overview

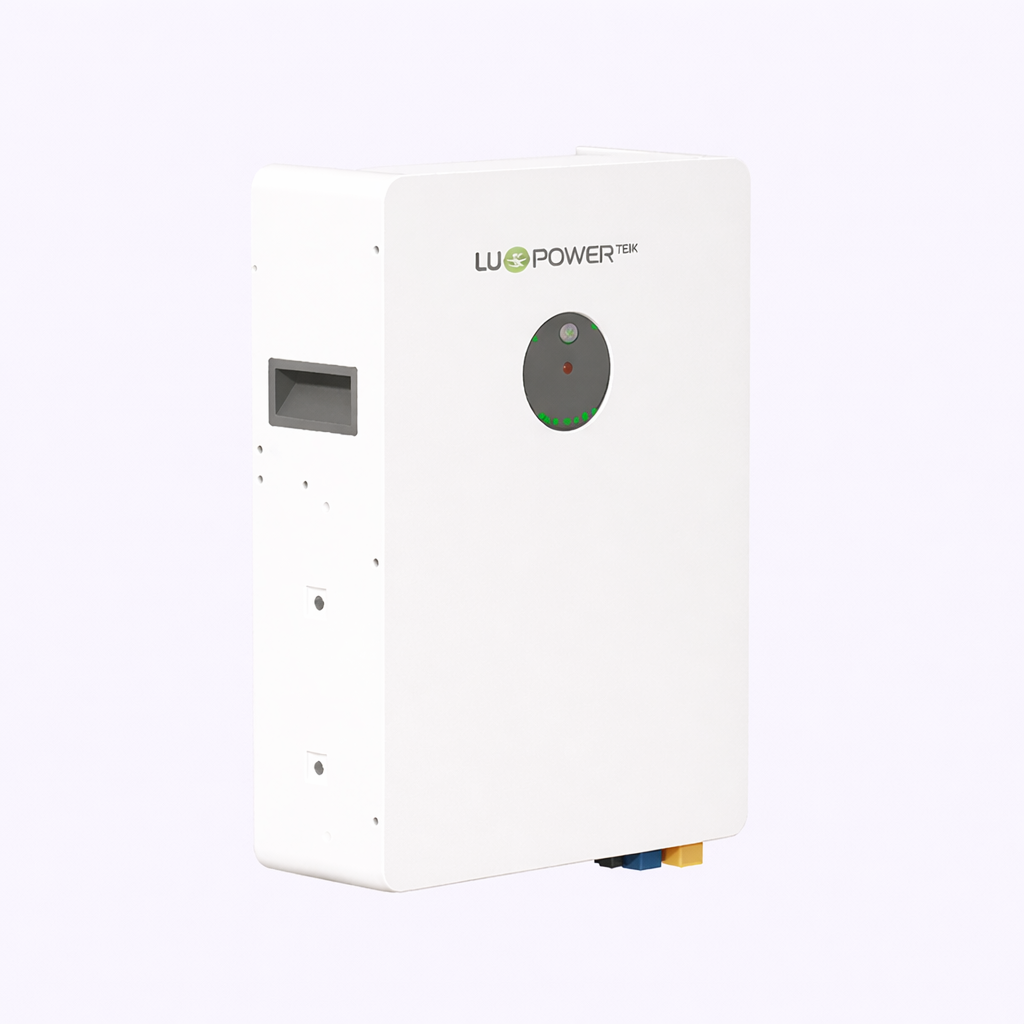

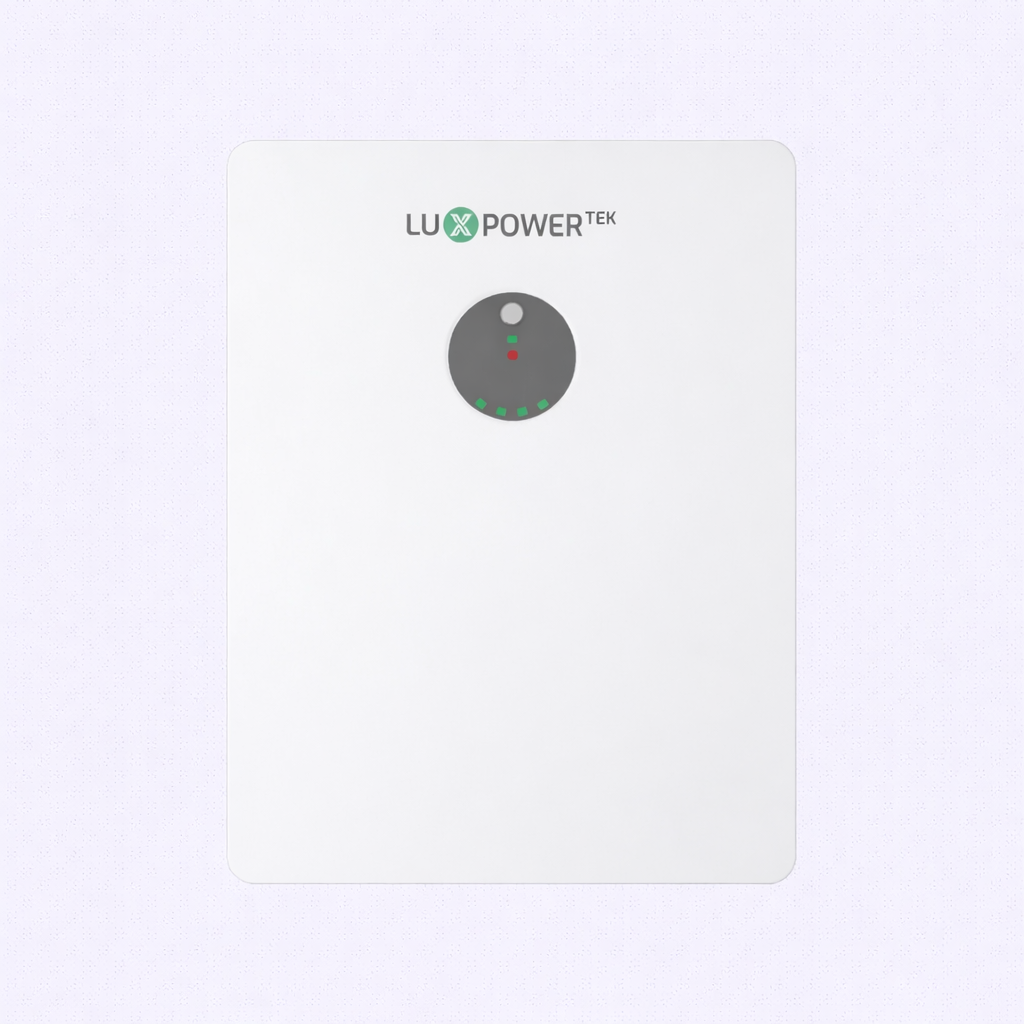

The LuxPower PGEM 51.2V 100Ah is a wall-mounted lithium iron phosphate (LFP) battery storage system designed for residential and hybrid solar applications. It offers high safety, long cycle life, and intelligent battery management with wide inverter compatibility.

2️⃣ Battery Specifications

• Cell type: LFP (Lithium Iron Phosphate)
• Rated energy: 5.12kWh
• Rated capacity: 100Ah
• Rated voltage: 51.2V
• Charge voltage: 56.5V
• Max charge/discharge current: 100A (1C rate continuous)
• Discharge peak current: 105A (15s), 150A (0.5s)
• Parallel capability: Up to 32 units without extra device

3️⃣ Battery Management System (BMS)

• Smart BMS management
• Active balancing charging
• Low self-consumption
• Overcharge protection
• Over-discharge protection
• Overcurrent protection
• Overvoltage protection
• Temperature protection
• Short circuit protection
• Reverse connection protection
• Low SOC protection
• Flexible remote firmware upgrade
• Original firmware backup to prevent upgrade failure

4️⃣ Communication & Compatibility

• Communication interface: CAN / RS485
• Compatible inverter brands: Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Sofar, Solark, SRNE, Must

5️⃣ Environmental Specifications

• Humidity: 5%–85% RH (No condensation)
• Working temperature: -20°C to +55°C
• Storage temperature: -10°C to +35°C

6️⃣ General Specifications

• Dimensions (W × H × D): 428 × 640 × 166 mm
• Weight: 58 kg
• IP Level: IP20
• Warranty: 5 years / 6000 cycles (@25°C, 90% DOD, 0.5C test condition)
• Certifications: CE, UN38.3, IEC62619
