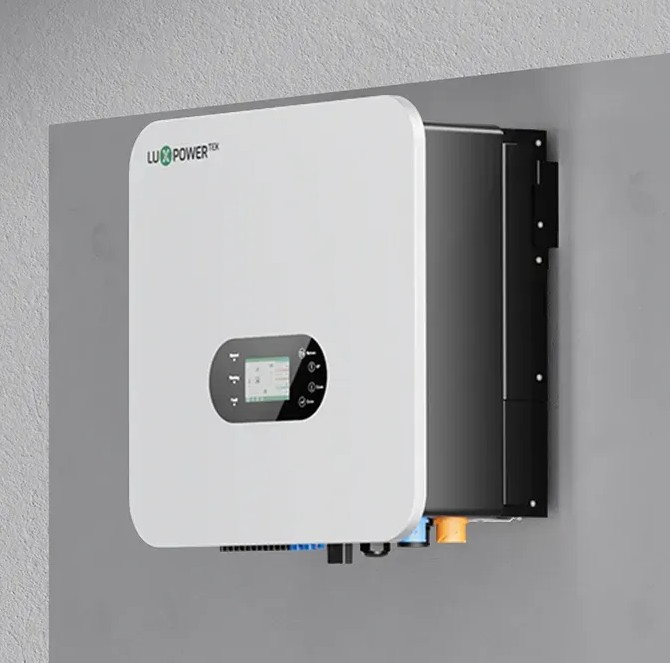

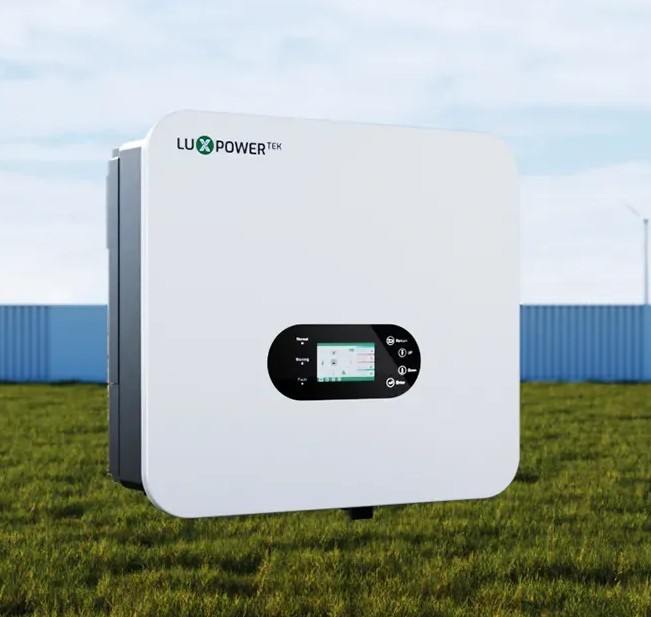

LuxPower TriP-EU-15K Three-Phase Hybrid Inverter

1️⃣ Product Overview

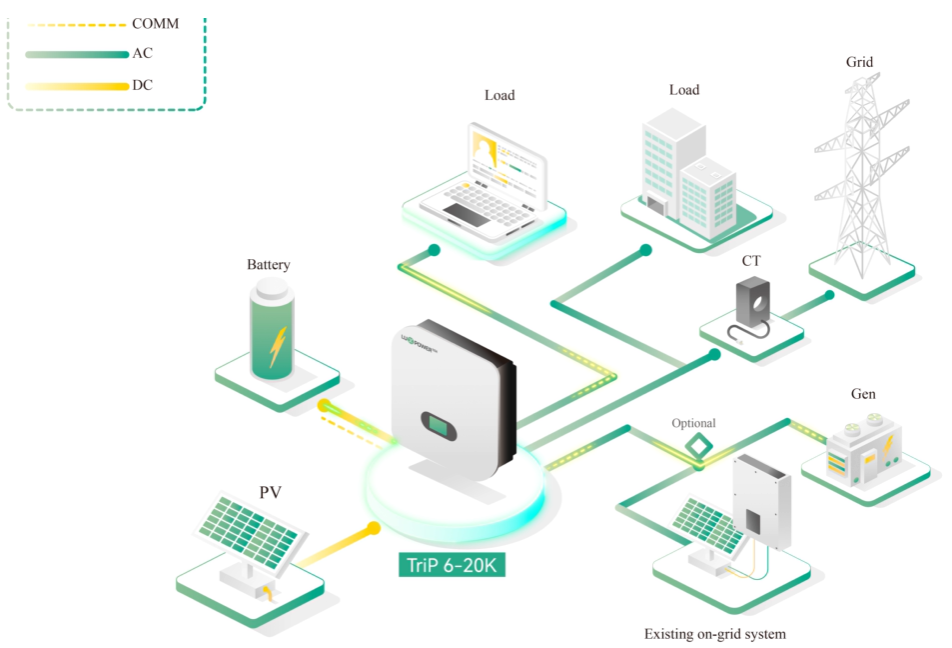

The LuxPower TriP-EU-15K is a three-phase hybrid inverter from the TriP HV 6–30K series designed for commercial and large residential solar systems. It integrates solar PV, high-voltage battery storage, grid interaction, and UPS backup into one advanced energy solution.

2️⃣ PV Input (Solar Side)

• Max PV input power: 22,500W
• Number of independent MPPT inputs: 3
• Rated PV input voltage: 690V
• Max PV input voltage: 1000V
• MPPT voltage range: 200–900V
• Start-up voltage: 100V
• Max PV input current per MPPT: 40/40/40A
• Max PV short-circuit current per MPPT: 50/50/50A

3️⃣ Battery System

• Compatible battery type: Lithium-ion / Lead-Acid
• Rated battery voltage: 400V
• Battery voltage range: 100–700V
• Max charge voltage: 700V
• Max charge/discharge current: 50A
• Max charge/discharge power: 15,000W
• Force wake-up battery from PV: Yes

4️⃣ Grid & AC Output

• Rated AC voltage: 230/400V
• Rated AC frequency: 50Hz
• Rated AC output current: 22.8A
• Rated AC output power: 15,000W
• Max AC input current: 34.1A
• Power factor: 0.99 (Adjustable 0.8 leading to 0.8 lagging)
• THDI: <3%
• Max continuous AC passthrough current: 75A

5️⃣ UPS Output

• Rated UPS output power: 15,000W
• Rated UPS output voltage: 230/400V
• Surge power: 1.5Pn, 10s
• Switching time: 20ms
• Waveform: Sine wave
• THDV: <3%

6️⃣ Efficiency

• Max efficiency: 97.4%
• Max charge/discharge efficiency: 97.2%

7️⃣ Protection

• PV reverse polarity protection
• Over current / over voltage protection
• Anti-islanding protection
• AC short-circuit protection
• Leakage current protection
• Grid monitoring
• DC switch
• DC surge protection: Type III
• AC surge protection: Type III

8️⃣ General Specifications

• Dimensions (W × H × D): 605 × 563 × 257 mm
• Weight: 38 kg
• Ingress protection rating: IP65
• Operating temperature: -25°C to 60°C
• Storage temperature: -40°C to 70°C
• Relative humidity: 0–100%
• Display & Communication: Touch color screen, RS485 / WiFi / CAN
• Warranty: 5 years

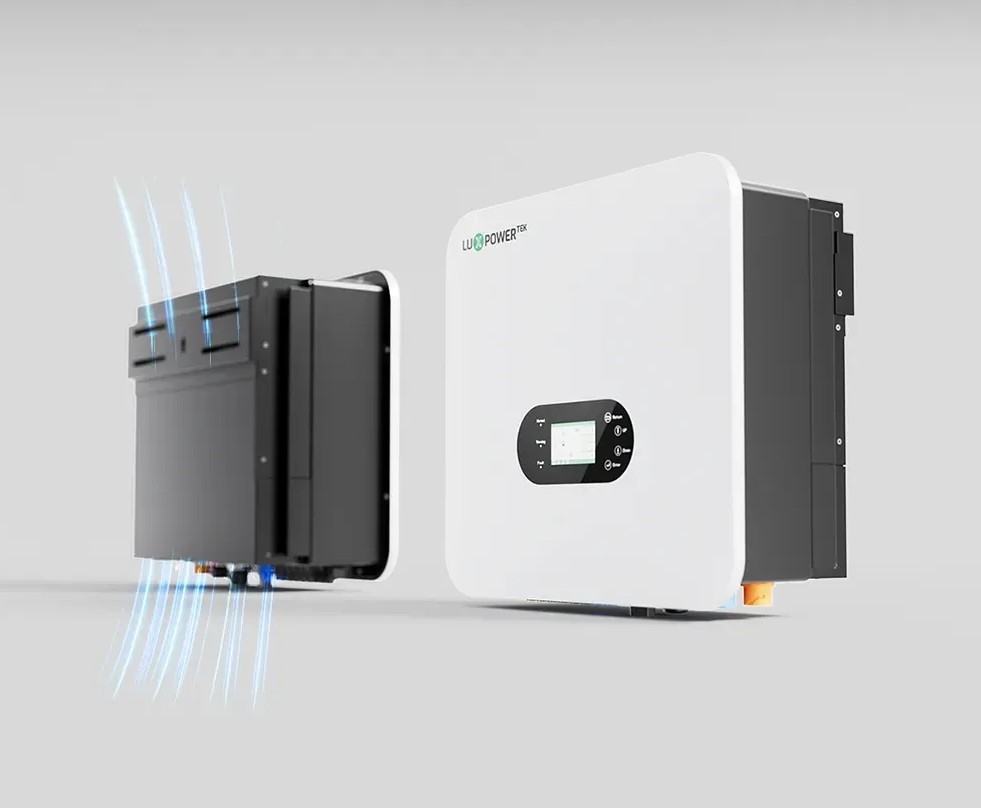

• Cooling method: Natural cooling / Smart cooling
• Topology: Transformer-less
• Max operating altitude: <4000m
• Noise emission: <50dB
