The DALY 16S 48V 60A LiFePO4 BMS is a common-port battery management system built for 16-cell LiFePO4 battery packs (nominal 48V / 51.2V), rated for 60A continuous charge and discharge. It’s suited for solar energy storage systems, e-bike/e-rickshaw packs, backup power units, and DIY LiFePO4 battery builds that need reliable protection at sustained mid-to-high current draw.
Features:
- 16S individual cell-voltage monitoring and protection
- Over-charge and over-discharge cutoff protection
- Over-current and short-circuit protection
- NTC-based temperature monitoring and thermal cutoff
- Passive cell balancing via the included balance wiring harness
- Common-port (P-/B-) design — single port handles both charge and discharge
- QC-tested unit with CE and RoHS compliance markings
Specifications:
| Parameter | Value |
|---|---|
| Model | 16S 48V 60A |
| Configuration | 16 cells in series (LiFePO4) |
| Nominal Voltage | 48V (51.2V pack) |
| Continuous Discharge Current | 60A |
| Continuous Charge Current | 60A |
| Chemistry | LiFePO4 |
| Port Type | Common port (P-/B-) |
| Temperature Sensing | NTC probe included |
| Certification | CE, RoHS |
Package Includes:

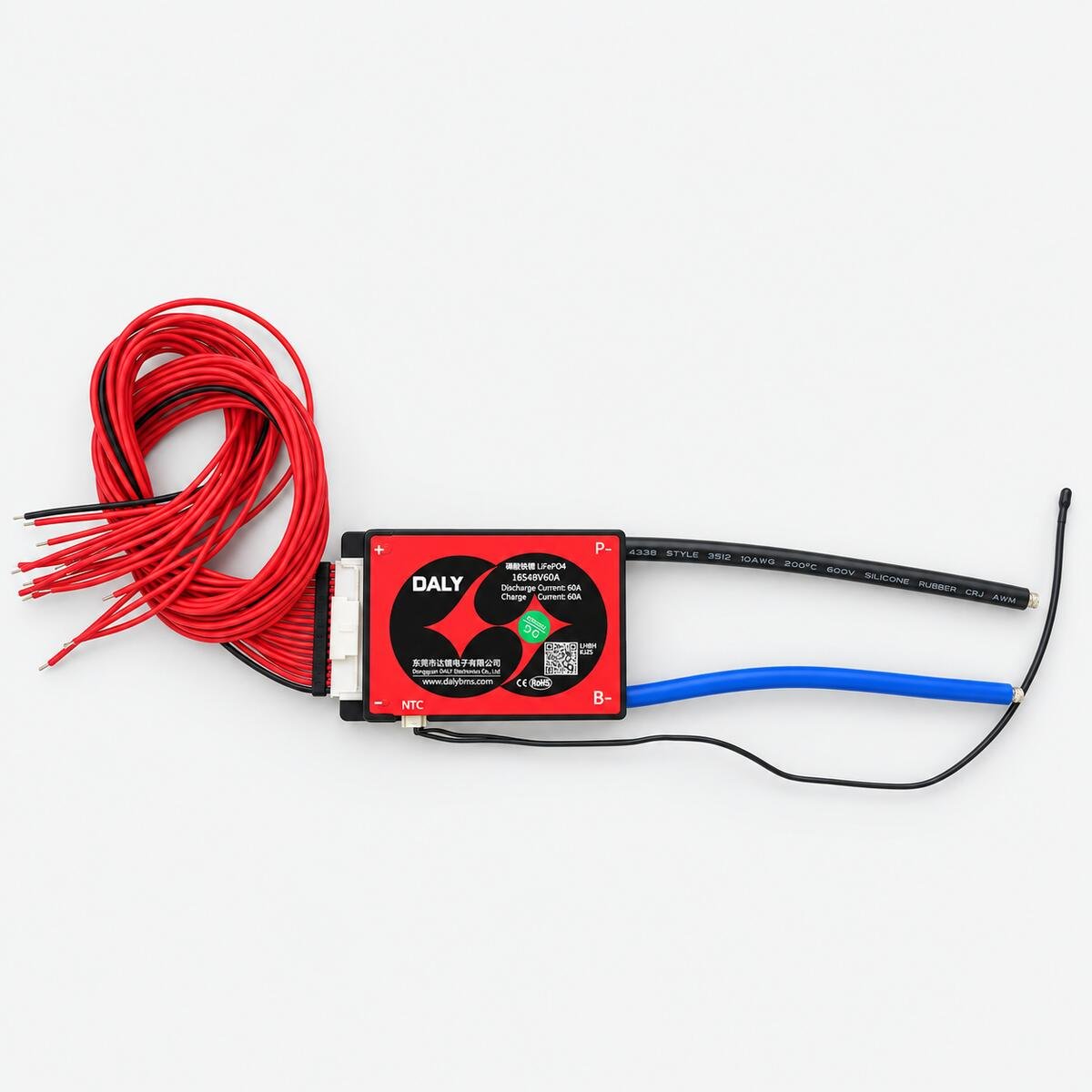

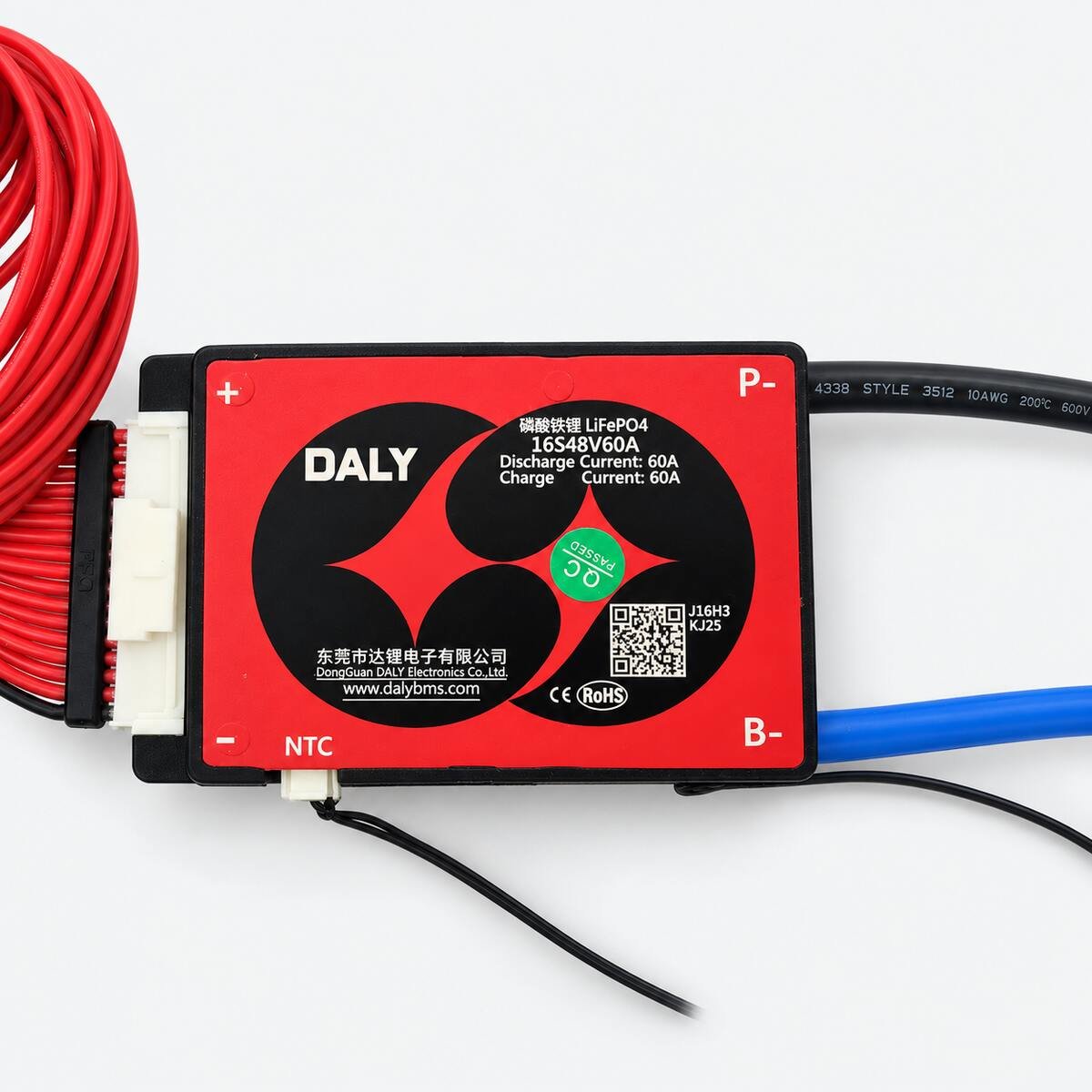

- 1× DALY 16S 48V 60A LiFePO4 BMS
- 1× NTC temperature sensor cable
- 1× Balance wiring harness (16S lead set)
