1. Product Overview

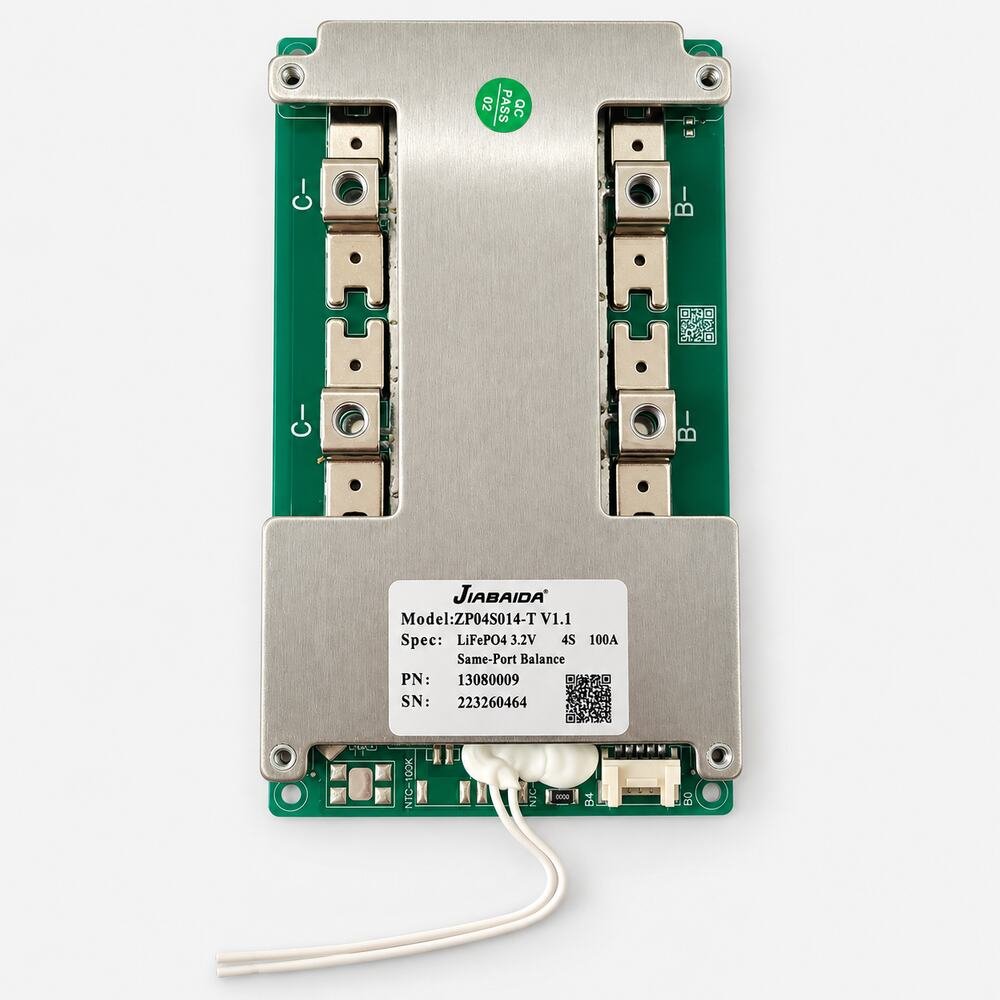

The JIABAIDA ZP04S014-T V1.1 is a high-current battery management system designed for four LiFePO₄ cells or parallel cell groups connected in series.

A completed 4S LiFePO₄ battery pack has a nominal voltage of approximately 12.8V and reaches 14.6V when fully charged. These batteries are commonly marketed as 12V LiFePO₄ batteries.

The BMS monitors the four series-connected cell groups and is intended to protect the battery against abnormal charging, excessive discharge, overcurrent and short-circuit conditions. It also provides cell balancing to help reduce voltage differences between the series groups.

This model carries an advertised 100A rating and uses a same-port configuration, allowing charging and discharging through a common external negative connection. Its metal-covered construction and multiple high-current terminal points make it suitable for compatible high-current battery-pack applications.

2. Technical Specifications

Exact continuous-current capability, charging-current limit, protection thresholds, balancing current, temperature limits and recovery delays should be confirmed from the manufacturer’s specification for this exact model.

3. Typical Connection Points

The exact balance-wire order must be confirmed from the wiring diagram supplied for the BMS. Never identify the sensing sequence only by wire colour or connector position.

4. Protection and Management Functions

The JIABAIDA 4S BMS is intended to provide essential protection and management functions, including:

• Monitoring of four series-connected cell groups
• Cell-balancing support
• Overcharge protection
• Over-discharge protection
• Discharge-overcurrent protection
• Short-circuit protection
• Charge and discharge switching through onboard MOSFETs
• Same-port charging and discharging
• Temperature protection when the required NTC sensor is installed
• Recovery after supported protection events

A BMS helps protect a correctly assembled battery pack, but it cannot compensate for damaged, mismatched, overheated or deeply discharged cells.

5. Suitable Applications

This BMS may be suitable for compatible 4S LiFePO₄ battery packs used in:

• Solar and backup-power batteries
• UPS battery packs
• Inverter batteries
• Portable power systems
• Robotics and automated equipment
• Marine and recreational batteries
• Camping and outdoor power systems
• Electric mobility equipment
• Battery-powered tools and equipment
• DIY 12.8V LiFePO₄ battery packs
• Lead-acid replacement batteries
• Battery repair and replacement projects

The continuous operating current and startup current of the connected equipment must remain within the verified capabilities of the BMS, battery cells, busbars, cables and connectors.

6. Battery and Charger Compatibility

Use this BMS only when:

• The battery contains exactly four series-connected LiFePO₄ cell groups.
• Each cell group has a nominal voltage of approximately 3.2V.
• The completed battery has a nominal voltage of approximately 12.8V.
• The charger is designed specifically for a 4S LiFePO₄ battery.
• The charger’s maximum output voltage does not exceed 14.6V.
• All four cell groups are at closely matched voltages before installation.
• The battery cells can safely deliver the required current.
• The load’s continuous and peak current remain within verified system limits.
• The sensing-wire sequence matches the manufacturer’s wiring diagram.

Do not use this BMS with 4S lithium-ion or lithium-polymer cells rated at 3.6V or 3.7V nominal. A 4S lithium-ion pack requires different charging and protection-voltage settings.

7. Installation Guidance

• Measure all four cell-group voltages before connecting the BMS.
• Confirm that the cells or parallel groups are connected correctly in series.
• Identify every balance wire using the correct wiring diagram.
• Connect B− securely to the battery-pack negative terminal.
• Connect each balance wire sequentially to the correct cell-group junction.
• Connect the final positive sensing wire to battery positive as specified.
• Connect the load and charger through the designated same-port terminals.
• Verify the voltage between every consecutive balance wire before inserting the connector.
• Use busbars, cables, terminals and connectors suitable for the expected current.
• Install an appropriately rated fuse close to the battery’s positive terminal.
• Tighten all high-current terminal connections correctly.
• Insulate the BMS and all exposed conductive connections.
• Mount the BMS where it cannot touch busbars, metal enclosures or other conductive parts.
• Provide adequate ventilation and heat dissipation.

Incorrect balance-wire sequence or reversed polarity can permanently damage the BMS.

8. Important Current-Rating Note

The advertised 100A BMS rating does not increase the current capability of the battery cells.

The safe current of the complete battery system is determined by the lowest-rated component, including:

• Battery cells
• BMS
• Busbars or nickel strips
• Power cables
• Terminals and connectors
• Fuse
• Charger
• Connected load

Motors, inverters and other inductive equipment may draw a starting or surge current considerably higher than their normal operating current. Confirm both the continuous and peak-current requirements before using this BMS.

The actual sustainable current may also depend on ambient temperature, airflow, cable size, terminal quality and heat dissipation. Do not assume that the advertised rating can be maintained continuously without testing the assembled battery under its intended load.

9. Safety Information

• Use only with a 4S LiFePO₄ battery pack.
• Use a compatible LiFePO₄ charger with a maximum output of 14.6V.
• Never reverse battery polarity.
• Never short the BMS or battery terminals.
• Do not connect balance wires in the wrong sequence.
• Do not insert the balance connector until every sensing voltage has been verified.
• Do not exceed the verified charge or discharge-current rating.
• Use a correctly rated fuse and suitably sized conductors.
• Keep the BMS away from water, conductive dust and loose metal objects.
• Do not use a burnt, cracked, corroded or unusually hot BMS.
• Stop using the battery if any cell group becomes swollen, overheated or abnormally unbalanced.
• Installation should be performed by someone familiar with high-current LiFePO₄ battery systems.
