JIABAIDA ZP16S011-T V1.2 16S 40A 51.2V LiFePO4(Lithium ion Phosphate battery) BMS with Balance

₹1,699.00

JIABAIDA battery-management system designed for compatible 16S LiFePO₄ battery packs with a nominal voltage of 51.2V.

  • Brand: JIABAIDA
  • Model: ZP16S011-T V1.2
  • Battery configuration: 16S
  • Battery chemistry: LiFePO₄
  • Compatible cell voltage: 3.2V nominal
  • Nominal pack voltage: 51.2V
  • Maximum charging voltage: 58.4V
  • Advertised current rating: 40A
  • Same-port charge and discharge design
  • Cell-balancing function
  • Temperature-sensor connection
  • Overcharge and over-discharge protection
  • Overcurrent and short-circuit protection
  • Metal heat-dissipation plates
  • Balance-wire connector included
  • UART connection pads visible on the board
  • Part number: 13460035
  • Installation by an experienced battery technician is recommended

2 in stock

1. Product Overview

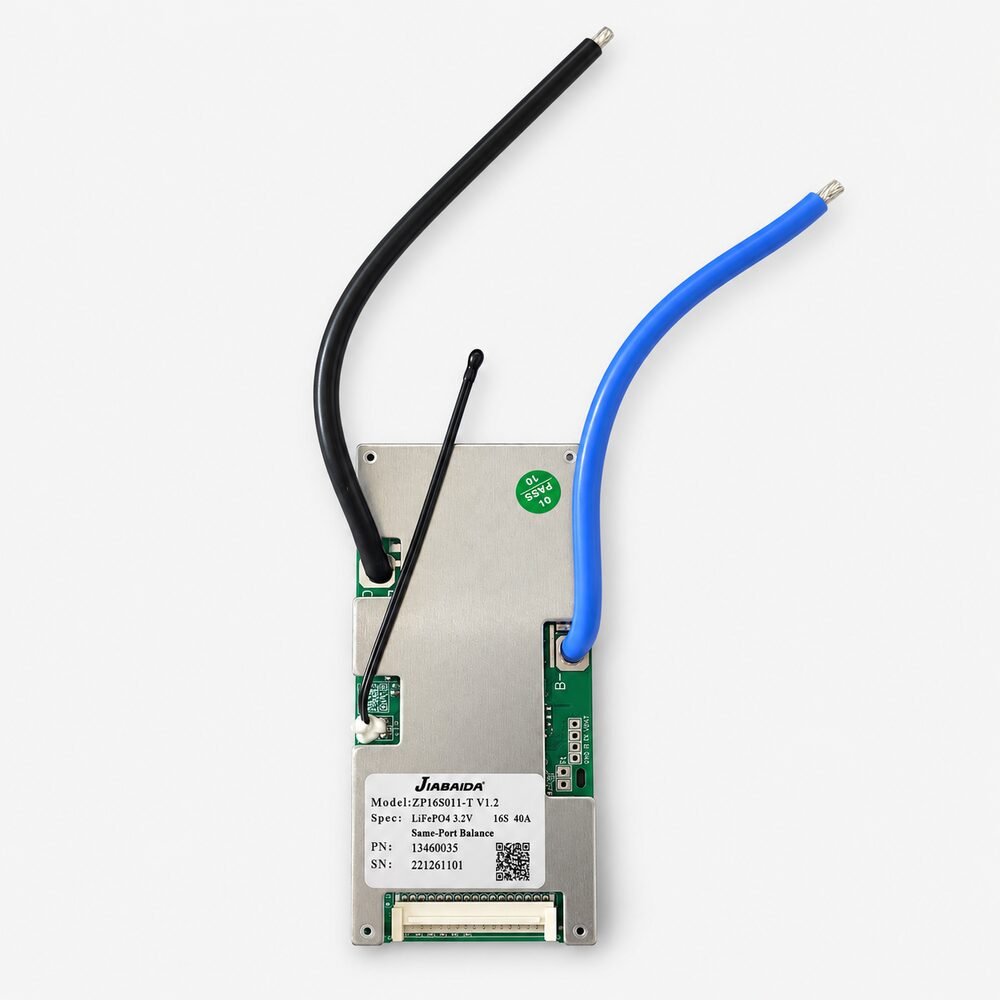

The JIABAIDA ZP16S011-T V1.2 is a 16S 40A battery-management system designed for LiFePO₄ (Lithium ion phosphate) battery packs containing sixteen cells or parallel cell groups connected in series.

A 16S LiFePO₄ battery has a nominal voltage of approximately 51.2V and reaches 58.4V when fully charged. Such battery packs are commonly marketed as 48V or 51.2V LiFePO₄ ( Lithium ion Phosphate battery ) batteries.

The BMS monitors the voltage of each series-connected cell group and helps protect the battery against unsafe charging, excessive discharge, overcurrent and short-circuit conditions. The product label identifies it as a same-port model with balancing, meaning the charger and load typically share the same controlled negative connection.

Its advertised 40A rating makes it suitable for compatible medium-current battery applications when the battery cells, cables, connectors, fuse and connected equipment are also properly rated.

2. Technical Specifications

Specification Details
Brand JIABAIDA
Model ZP16S011-T V1.2
Part number 13460035
Product type LiFePO₄ ( Lithium ion Phosphate battery) battery-management system
Cell configuration 16S
Battery chemistry LiFePO₄
Compatible cell voltage 3.2V nominal
Nominal pack voltage 51.2V
Battery class 48V/51.2V LiFePO₄
Maximum charging voltage 58.4V
Advertised current rating 40A
Port configuration Same-port
Cell balancing Yes, stated on the product label
Temperature monitoring Temperature-sensor lead visible
Protection functions Overcharge, over-discharge, overcurrent and short circuit
Cell-voltage monitoring Sixteen series-connected cell groups
Heat management Metal heat-dissipation plates
Balance connection Multi-wire balance connector

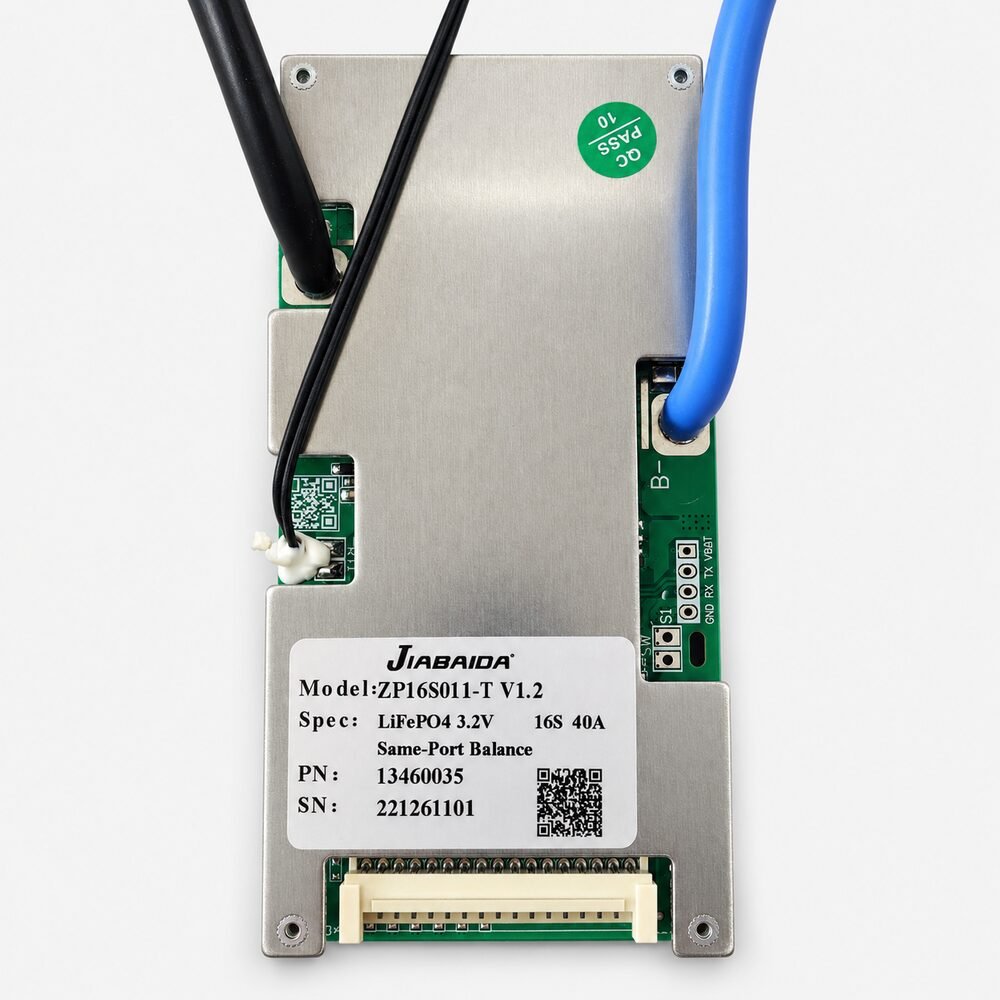

UART pads GND, RX, TX and VBAT markings visible
Bluetooth connectivity Not confirmed
Communication protocol Not confirmed
Installation type Battery-pack integrated
Charger requirement 16S LiFePO₄ charger with maximum output of 58.4V

The exact charge-current limit, balancing current, protection thresholds, communication protocol and recovery-delay values should be confirmed from the manufacturer’s specification for this exact model.

3. Typical Connection Points

Connection Typical function
B− Battery-pack negative terminal
B1–B15 Intermediate cell-group voltage-sensing connections
B+ Positive terminal of the sixteenth cell group
P− Controlled negative connection shared by the charger and load
P+ External positive connection, normally connected directly to battery positive
NTC Battery temperature-sensor connection
Balance connector Connects the sixteen cell-group sensing wires to the BMS
UART pads Communication or configuration connection; pinout and protocol must be verified

The exact connection order must be confirmed using the wiring diagram supplied for the ZP16S011-T V1.2. Do not identify connections only by wire colour or physical location.

4. Protection Functions

The JIABAIDA 16S BMS is intended to provide essential protection for compatible LiFePO₄ battery packs, including:

  • Individual cell-group voltage monitoring
  • Overcharge protection
  • Over-discharge protection
  • Discharge-overcurrent protection
  • Short-circuit protection
  • Charge and discharge switching through internal MOSFETs
  • Temperature monitoring through the supplied sensor
  • Cell balancing
  • Recovery after supported protection events

A BMS helps protect a correctly designed battery pack, but it cannot repair damaged, mismatched, internally shorted or deeply discharged cells.

5. Suitable Applications

This BMS may be suitable for compatible 16S LiFePO₄ Lithium ion Phoshate battery packs used in:

  • Solar-energy storage batteries
  • Inverter and UPS systems
  • Electric scooters
  • E-bikes and mobility equipment
  • Portable power systems
  • Robotics and automated equipment
  • Telecom backup batteries
  • Marine and recreational power systems
  • Custom 48V or 51.2V LiFePO₄ packs
  • Battery repair and replacement projects

The continuous operating current and startup current of the connected equipment must remain within the verified capabilities of the BMS and battery pack.

6. Battery and Charger Compatibility

Use this BMS only when:

  • The battery contains exactly sixteen series-connected LiFePO₄ cell groups.
  • Each cell group has a nominal voltage of approximately 3.2V.
  • Each cell group has a recommended maximum charging voltage of 3.65V.
  • The completed pack has a nominal voltage of approximately 51.2V.
  • The charger is designed specifically for a 16S LiFePO₄ battery.
  • The charger’s maximum output voltage does not exceed 58.4V.
  • All sixteen cell groups are at closely matched voltages before connection.
  • The battery cells can safely supply the required current.
  • The load’s continuous and peak current remain within verified system limits.

Do not use this BMS with 16S lithium-ion or lithium-polymer cells rated at 3.6V or 3.7V nominal. Those chemistries require different charging and protection-voltage thresholds.

7. Installation Guidance

  • Measure the voltage of all sixteen cell groups before installation.
  • Confirm the balance-wire order using the correct wiring diagram.
  • Connect B− to the battery-pack negative terminal.
  • Connect each balance wire sequentially to its corresponding cell-group junction.
  • Connect B+ or the final sensing wire to battery positive as specified.
  • Verify the voltage between every pair of consecutive balance wires.
  • Plug in the balance connector only after confirming every sensing voltage.
  • Connect the charger and load through the appropriate same-port connections.
  • Position the temperature sensor securely against the battery cells.
  • Use properly sized power cables, terminals and connectors.
  • Install an appropriately rated fuse close to the battery’s positive terminal.
  • Secure and insulate all exposed electrical connections.
  • Mount the BMS where heat can dissipate and the board cannot touch conductive parts.
  • Confirm UART compatibility before attaching any communication adapter.

Incorrect connection of even one balance wire can permanently damage the BMS.

8. Important Current-Rating Note

The 40A BMS rating does not increase the current capability of the battery cells.

The safe operating current of the complete battery system is determined by the lowest-rated component, including:

  • Battery cells
  • BMS
  • Busbars or nickel strips
  • Power cables
  • Connectors
  • Fuse
  • Charger
  • Connected load

Motors, pumps and inverters can draw startup or surge current considerably higher than their normal operating current. Confirm both continuous and peak-current requirements before selecting this BMS.

Do not assume that the printed 40A rating represents both the charging and continuous discharging limits. The separate charging-current limit should be verified from the manufacturer’s documentation.

Adequate heat dissipation is necessary when operating near the BMS current limit.

9. Safety Information

  • Use only with a 16S LiFePO₄ battery pack.
  • Use a charger with a verified 16S LiFePO₄ charging profile.
  • Do not exceed a maximum charging voltage of 58.4V.
  • Never reverse the battery polarity.
  • Never short the battery or BMS terminals.
  • Do not connect balance wires in the wrong sequence.
  • Do not plug in the balance connector until all sensing voltages have been verified.
  • Do not exceed the verified charge or discharge-current limit.
  • Use a suitable fuse and correctly rated power cables.
  • Keep the BMS away from water, conductive dust and loose metal objects.
  • Do not use damaged, burnt, corroded or unusually hot components.
  • Stop using the battery if any cell becomes swollen, overheated or abnormally unbalanced.
  • Installation should be performed by someone familiar with high-current LiFePO₄ battery systems.
