JIABAIDA ZP20S006-T V1.1 16S 100A 51.2V LiFePO4 (Lithium Ion Phosphate) BMS with Balance

1. Product Overview

The JIABAIDA ZP20S006-T V1.1 is a high-current battery-management system configured for sixteen LiFePO₄ (Lithium Ion Phosphate) cells or parallel cell groups connected in series.

A 16S LiFePO₄ battery has a nominal voltage of approximately 51.2V and reaches 58.4V when fully charged. Such batteries are commonly marketed as 48V or 51.2V LiFePO₄ battery packs.

The BMS monitors the voltage of each series-connected cell group and helps protect the battery against unsafe charging, excessive discharge, overcurrent and short-circuit conditions.

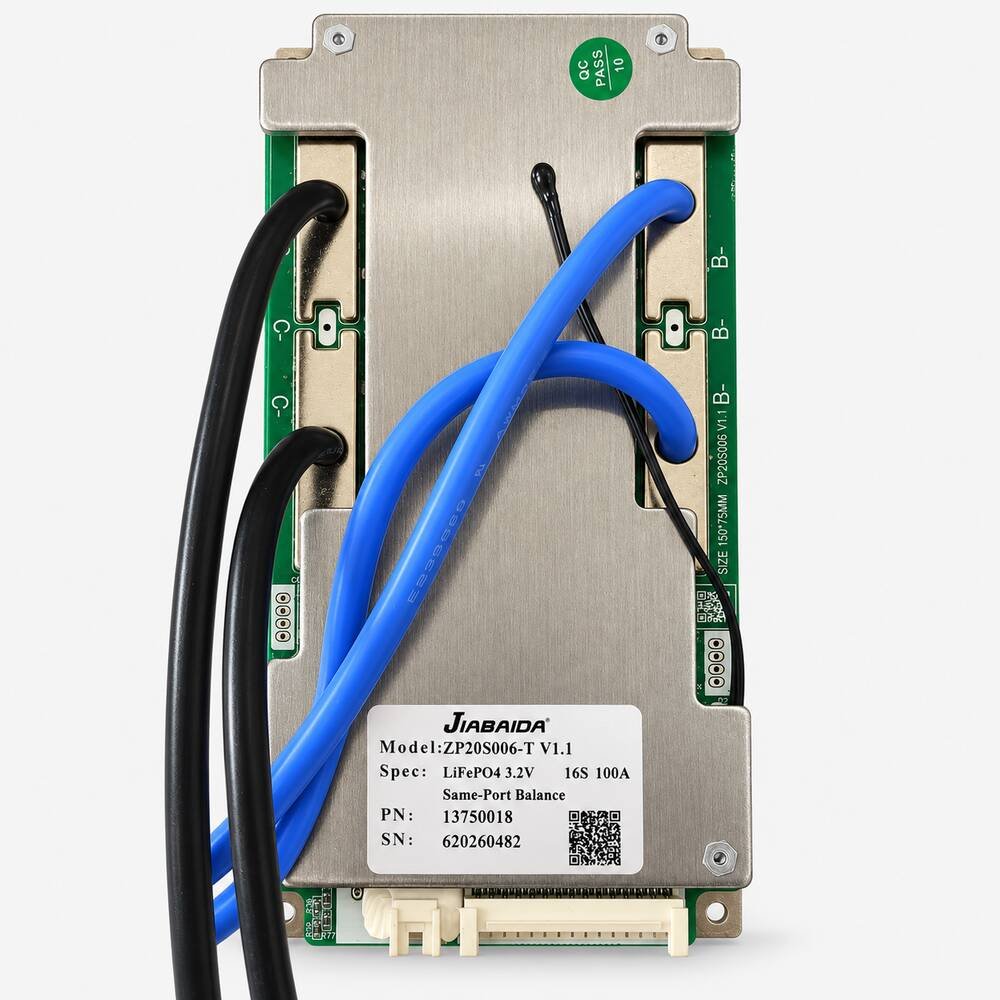

The product label specifies a 16S configuration, an advertised 100A rating, same-port operation and cell balancing. Multiple heavy-gauge power leads are provided to share the high-current path.

Although the PCB marking contains “ZP20S006,” this particular unit is labelled and configured as a 16S BMS. It should not be advertised or connected as a 20S unit unless the manufacturer confirms that the configuration has been changed.

2. Technical Specifications

The exact charging-current limit, balancing current, protection thresholds, communication protocol and recovery-delay values should be confirmed from the manufacturer’s specification for this exact model.

3. Visible and Typical Connection Points

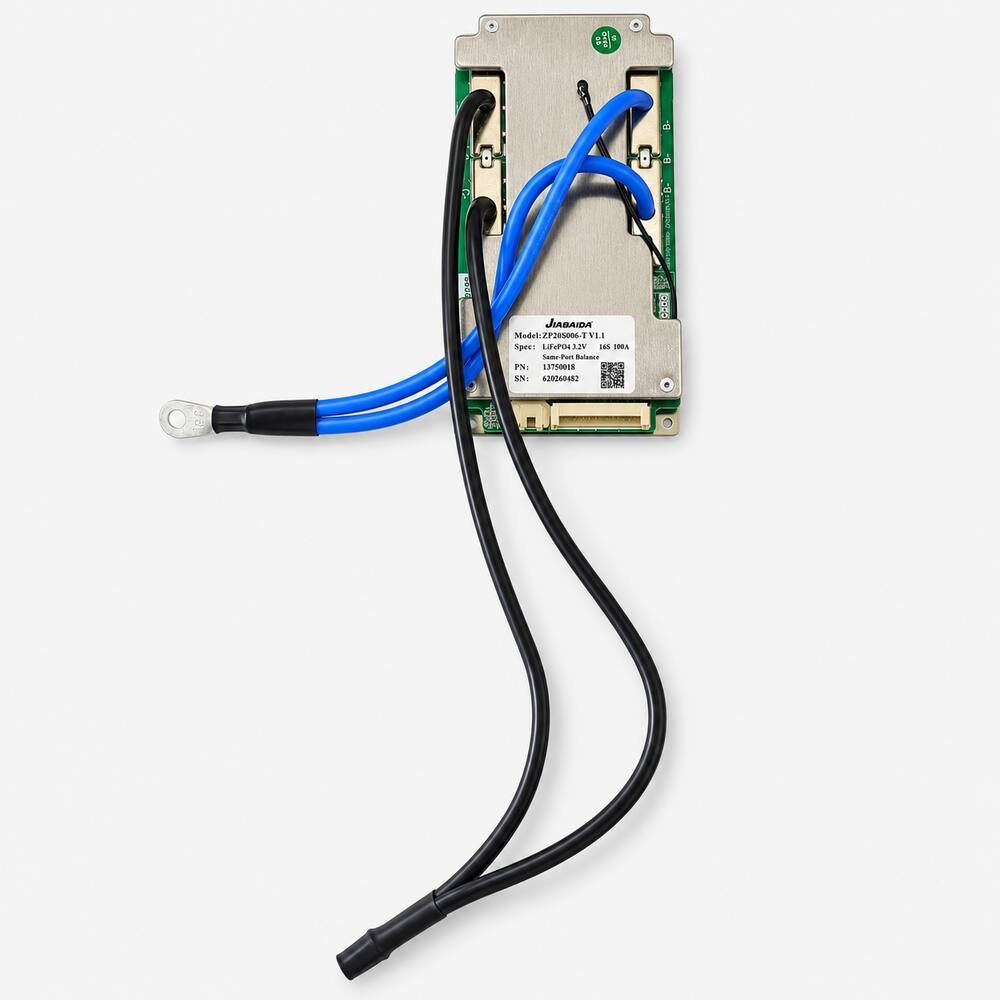

The photographed BMS has multiple thick cables connected to the B− and C− current paths. These cables are intended to operate together for current sharing and should be connected according to the manufacturer’s wiring diagram.

Do not assume that one cable can safely carry the full advertised current.

The exact balance-wire sequence and port arrangement must be confirmed before installation. Do not identify connections only by cable colour or physical position.

4. Protection Functions

The JIABAIDA 16S BMS is intended to provide essential protection for compatible LiFePO₄ battery packs, including:

• Monitoring of sixteen individual cell groups
• Overcharge protection
• Over-discharge protection
• Discharge-overcurrent protection
• Short-circuit protection
• Charge and discharge switching through onboard MOSFETs
• Temperature monitoring through the sensor lead
• Cell balancing
• Recovery after supported protection events

A BMS helps protect a correctly designed battery pack, but it cannot repair damaged, mismatched, internally shorted or deeply discharged cells.

5. Suitable Applications

This BMS may be suitable for compatible 16S LiFePO₄ battery packs used in:

• Solar-energy storage batteries
• Inverter and UPS systems
• Electric scooters
• E-rickshaws and mobility equipment
• Low-speed electric vehicles
• Portable power systems
• Robotics and automated equipment
• Telecom backup systems
• Marine and recreational power systems
• Custom 48V or 51.2V LiFePO₄ batteries
• Battery repair and replacement projects

The equipment’s continuous operating current and startup or surge current must remain within the verified capabilities of the BMS, battery cells and complete battery assembly.

6. Battery and Charger Compatibility

Use this BMS only when:

• The battery contains exactly sixteen series-connected LiFePO₄ cell groups.
• Each cell group has a nominal voltage of approximately 3.2V.
• Each cell group has a recommended maximum charging voltage of 3.65V.
• The completed battery has a nominal voltage of approximately 51.2V.
• The charger is designed specifically for a 16S LiFePO₄ battery.
• The charger’s maximum output voltage does not exceed 58.4V.
• All sixteen cell groups are at closely matched voltages before connection.
• The battery cells can safely supply the required operating current.
• The load’s continuous and peak current remain within verified system limits.
• All parallel high-current B− and C− cables are installed as specified.

Do not use this BMS with 16S lithium-ion or lithium-polymer cells rated at 3.6V or 3.7V nominal. Those chemistries require different charging and protection-voltage thresholds.

7. Installation Guidance

• Measure the voltage of all sixteen cell groups before installation.
• Confirm the balance-wire order using the correct wiring diagram.
• Connect B− to the battery-pack negative terminal.
• Connect each sensing wire sequentially to the appropriate cell-group junction.
• Connect B+ or the final sensing wire to battery positive as specified.
• Verify the voltage between every consecutive balance wire.
• Plug in the balance connector only after checking every sensing voltage.
• Connect the charger and load through the specified same-port power connections.
• Connect all parallel high-current cables supplied for each terminal.
• Position the temperature sensor securely against the battery cells.
• Use correctly sized busbars, cables, terminals and connectors.
• Install an appropriately rated fuse close to the battery’s positive terminal.
• Keep all high-current connections tight and mechanically supported.
• Secure and insulate every exposed electrical connection.
• Mount the BMS where heat can dissipate and conductive parts cannot contact the PCB.
• Confirm interface voltage, pinout and protocol before connecting a communication adapter.

Incorrect connection of even one sensing wire can permanently damage the BMS.

8. Important Current-Rating Note

The 100A BMS rating does not increase the current capability of the battery cells.

The safe operating current of the complete battery system is determined by the lowest-rated component, including:

• Battery cells
• BMS
• Busbars or nickel strips
• Power cables
• Cable joints and terminals
• Connectors
• Fuse
• Charger
• Connected load

Motors, pumps and inverters can draw startup or surge current considerably higher than their normal operating current. Confirm both continuous and peak-current requirements before selecting this BMS.

Do not assume that the printed 100A rating represents both the charging and continuous discharging limits. The separate charging-current limit should be verified from the manufacturer’s documentation.

The supplied parallel power cables should share the current. Using only one of the parallel cables may cause excessive heating and reduce the safe operating-current capacity.

Adequate heat dissipation is required when operating near the BMS current limit.

9. Safety Information

• Use only with a 16S LiFePO₄ battery pack.
• Use a charger with a verified 16S LiFePO₄ charging profile.
• Do not exceed a maximum charging voltage of 58.4V.
• Never reverse the battery polarity.
• Never short the battery or BMS terminals.
• Do not connect balance wires in the wrong sequence.
• Do not plug in the balance connector until all sensing voltages have been verified.
• Do not exceed the verified charging or discharging-current limit.
• Connect all high-current cables according to the manufacturer’s instructions.
• Use a suitable fuse and correctly rated power cables.
• Keep the BMS away from water, conductive dust and loose metal objects.
• Do not use damaged, burnt, corroded or unusually hot components.
• Stop using the battery if any cell becomes swollen, overheated or abnormally unbalanced.
• Installation should be performed by someone familiar with high-current LiFePO₄ battery systems.
